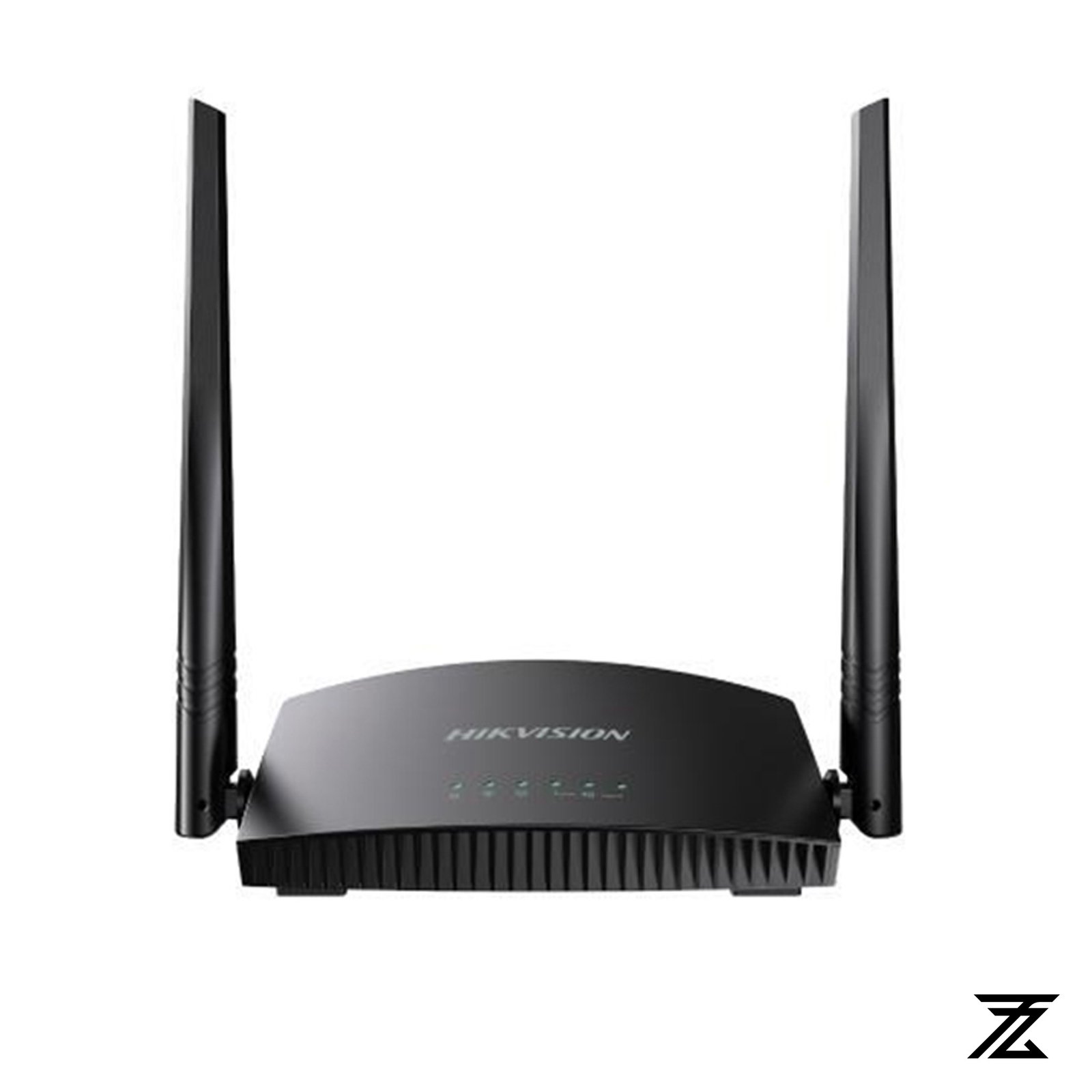

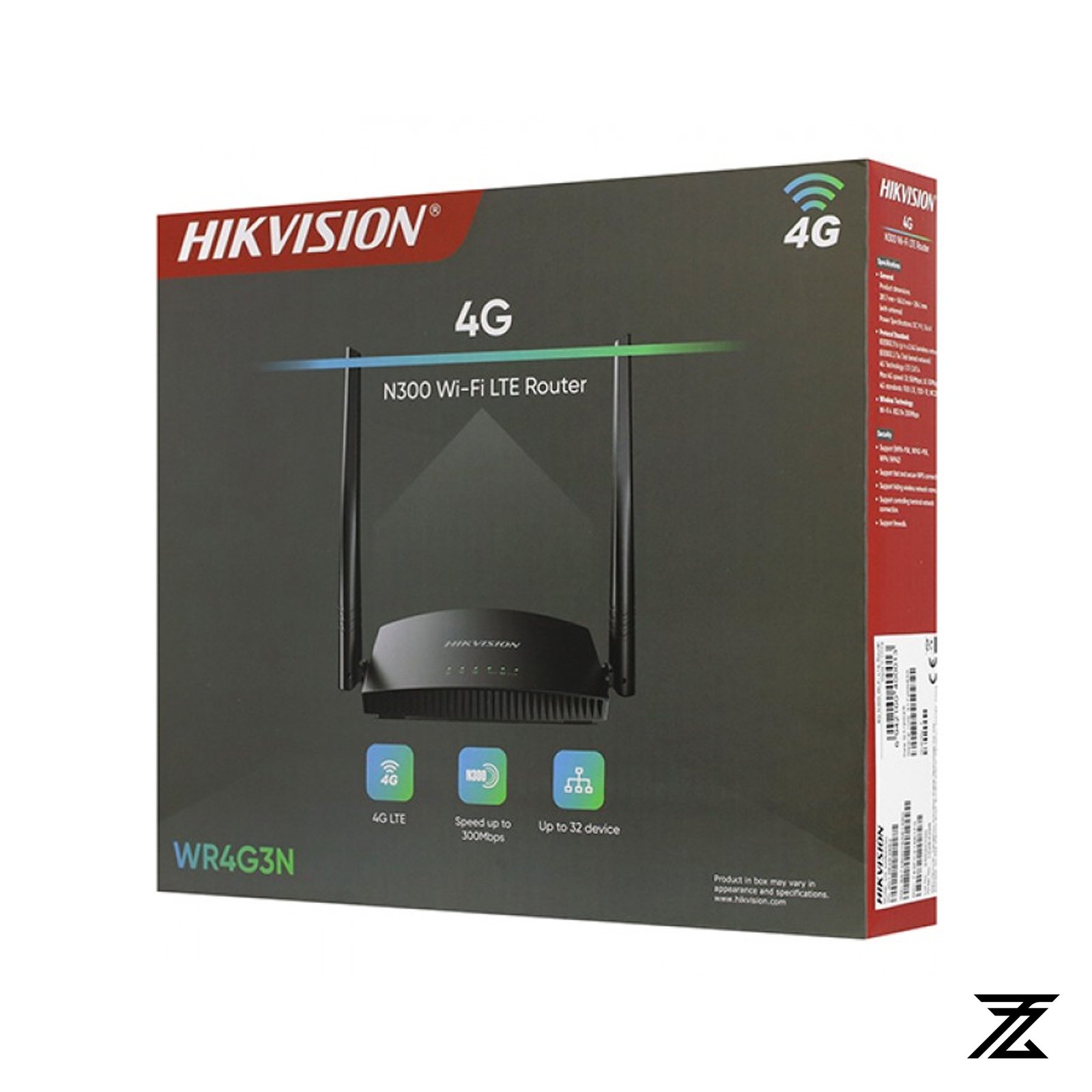

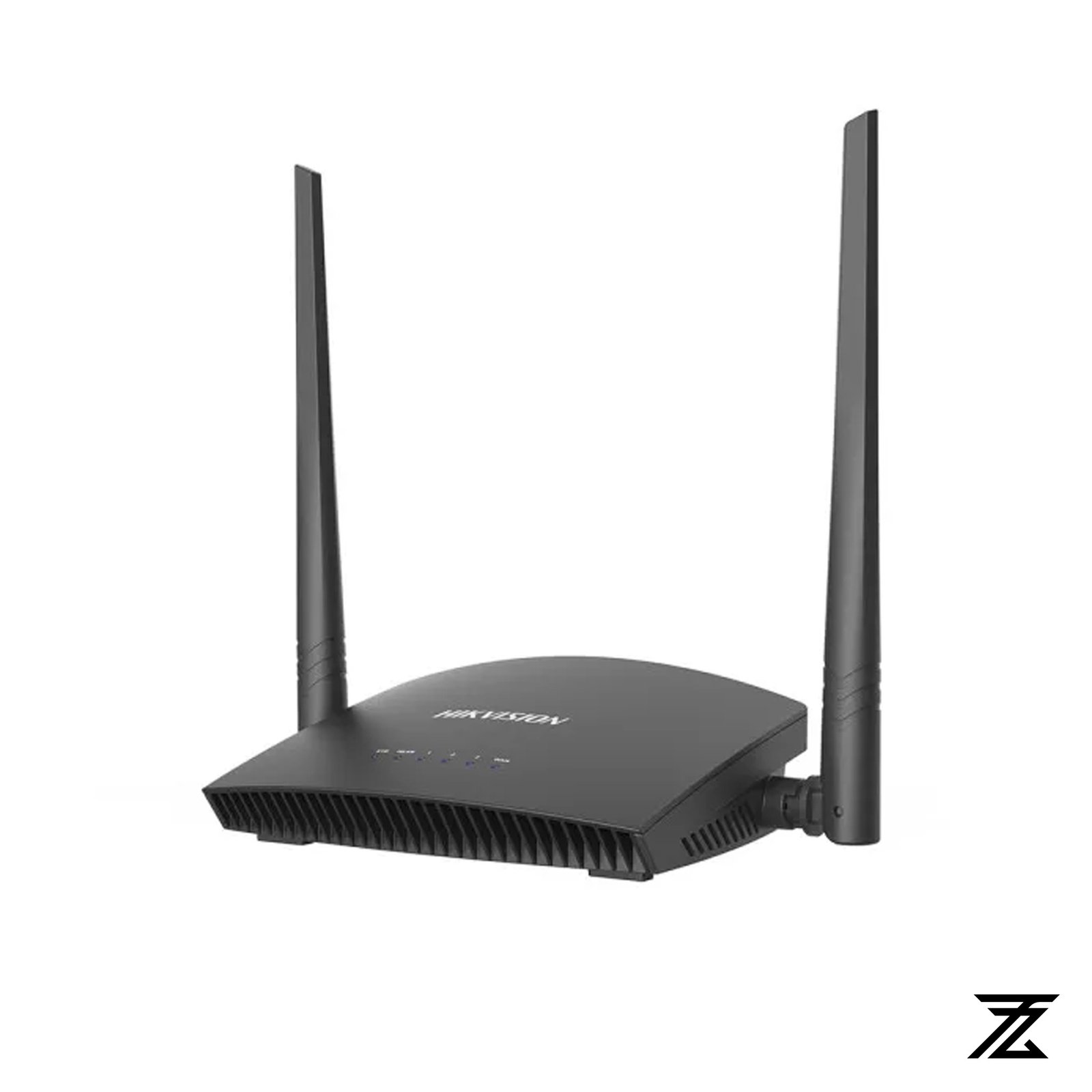

HiKVISION High Speed DS-3WR4G3N 4G LTE SIM WiFi Router

HiKVISION High Speed DS-3WR4G3N 4G LTE SIM WiFi Router

Main Specifications

General

• Packing List

• • 4G LTE Router × 1
  • Power Adapter × 1
  • Ethernet Cable × 1
  • Quick Start Guide × 1
  • Regulatory Compliance and Safety Information × 1
• Packing Method: Single pack
• Installation Mode: Desktop installation
• Max. Power Consumption: ≤ 6 W
• Gross Weight: 0.396 kg

Wireless Parameter

• Max. Transmission Rate of Air Interface: 2.4 GHz: 300 Mbps
• Wireless Standard: IEEE 802.11b/g/n @2.4GHz
• Working Frequency Band: 2.4 GHz
• Antenna
  • 2 External 4G/3G Antennas
  • 2 Internal Wi-Fi Antennas
• Mobile Standards: FDD LTE, TDD-LTE,WCDMA
• Mobile Bands: FDD-LTE: B1/B3/B5/B7/B8/B20/B28AB TDD-LTE: B38/B40/B41 WCDMA: B1/B5/B8
• 4G Speed: DL: 150 Mbps, Upload: 50 Mbps

Hardware Parameter

• Network Interface
  • 2 × RJ45, 10/100 Mbps auto-negotiation
  • 1 × Nano SIM Card Slot
• Reset: WPS/Reset button*1
• Power Supply Method: 9 VDC, 0.6 A power adapter power supply
• Power Specifications: 9 VDC, 0.6 A

Software Function

• • Application Function
    • 3G/4G Route Mode, Wireless Router Mode, and AP Mode supported
    • DHCP Server supported
    • Guest Network Configuration supported
    • Signal Adjustment supported
    • WiFi Schedule supported
  • Security Mode: WPA-PSK, WPA2-PSK, WPA and WPA2 supported
  • Security Mechanism: Hide SSID
  • Management Method: Web
  • Upgrade: Web
  • System Log: System log
